| 리언동 Ｕ GU 17-2#, 성위안 도로 1#, 치안코우 거리, 펑화 지구, 닝보 시, 저장 성, 중국 | airwolf@flyautomatic.com |

|
| 원래 장소: | 대만, 중국, 중국 |
| 브랜드 이름: | CJAC, AIRWOLF or OEM |
| 모델 번호: | AC2020-2, AC2030-2, AC2050-2, AC2525-2 |
| 최소 주문 수량: | 1개 조각 |
|---|---|
| 가격: | 4-7USD |
| 포장 세부 사항: | 상자, 종이팩, 팔레트, 비닐봉지 |
| 배달 시간: | 1-7 일 |
| 지불 조건: | T/T, 웨스턴 유니온, 페이팔 |
| 공급 능력: | 주당 1000 개 PC |
| 종목 코드: | AC2020-2, AC2030-2, AC2050-2, AC2525-2 | 외부 파이프 재질: | AISI1215 및 STKM11A 산화 된 검은 색, 니켈 도금 처리 |
|---|---|---|---|
| 피스톤 로드 소재: | 단단한 크롬 도금 처리 | 작업 온도 범위: | -10~+80C |
| 기능: | 충격 보호, 충격 흡수 | 속도 범위: | 2.0~2.5m/s |
| 강조하다: | CJAC AC Series shock absorber,Pneumatic air cylinder shock absorber,AC2020-2 shock absorber with warranty |
||

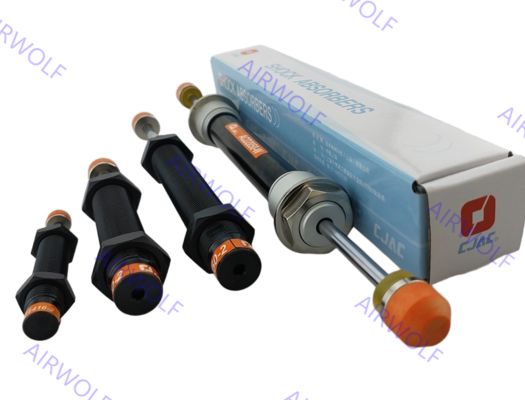

The AC series is designed for fixed construction. Linear deceleration of moving objects is maintained through specially designed and tested oil holes and alignment. From high-speed light loads to low speeds and high loads, this shock absorber absorbs the appropriate energy without adjustment. After the load is removed, the axis is pushed to the original position by the return spring. The AC series has three models of high speed, medium speed, and low speed to meet your different requirements.
Order Code:
| Item Code | A(mm) | B(mm) | D(mm) | F(mm) |
|---|---|---|---|---|
| AC2020-2 | 145.3 | 110 | 6 | 101 |
| AC2030-2 | 158.3 | 113 | 6 | 104 |
| AC2050-2 | 232.5 | 167 | 6 | 158 |
| AC2525-2 | 155 | 111 | 8 | 101 |
Specifications:
| Model | AC2020-2 | AC2030-2 | AC2050-2 | AC2525-2 |
| Stroke(mm) | 20 | 30 | 50 | 25 |
| Maximum absorbed energy (Nm(Et)) | 40 | 50 | 60 | 80 |
| Absorbed energy per hour (Nm(Etc)) | 40000 | 48000 | 60000 | 54000 |
| Maximum effective weight (Kg(Me)) | 200 | 200 | 400 | 800 |
| Highest impact speed (m/s(v)) | 2.0 | 2.0 | 2.0 | 2.5 |
| Thread | M20x1.5 | M20x1.5 *M20x2.0 | M20x1.5 | M25x1.5 *M25x2.0 |
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
| Our product features: | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging | 3) 1 year warranty |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
